Stengeventil gj. RG5 456022 PN16

02-010-001

456022

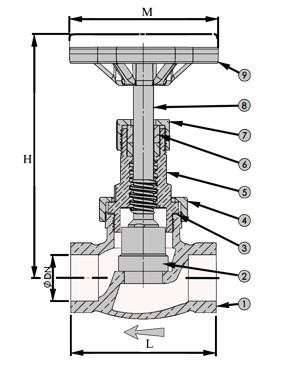

No

Part

Material

1

Body

Gunmetal LG2

2

Disc 456022&456122

Gunmetal LG2

3

Bonnet

Gunmetal LG2

4

Lock nut

Gunmetal LG2

5

Stem

Special brass

6

Gland

Special brass

7

Gland nut

Special brass

8

Handwheel

Cast iron

OBS:  Seat ring 457122 of stainl. st. 316 S33



Application: Liquids that do not attack the integral material.
For warm sea water it is recommended to employ the execution with a stem of CuAl 10Ni
and PTFE Disc ring see fig.335223-T

Kan leverest med Parabol-kjegle  (reguleringskjegle)

DN

 D L L1 L2 H.max  H1 max R Kv 456022 Weight
Kg. 456022		 Weigth Kg.
456122

10

G 3/8"

60

35

30

95

86

65

2

0.5

 0,5

15

G 1/2"

65

40

35

95

86

65

5

0.5

 0,5

20

G 3/4"

75

45

40

110

100

75

8

0.7

0,7

25

G 1 "

90

50

45

115

105

75

12

1,2

 1,1

32

G 1 1/4"

105

55

50

135

120

85

20

1.6

 1,6

40

G 1 1/2"

120

65

55

145

135

100

30

2.3

 2,0

50

G 2 "

145

75

65

165

150

120

47

3.4

 3,5

65

G 2 1/2"

170

90

75

230

230

160

80

7.0

 7,6

80

G 3 "

200

110

90

250

250

160

115

11,5

 12,0

100

G 4 "

220

 - -

260

 -

160

190

13,5

 -
