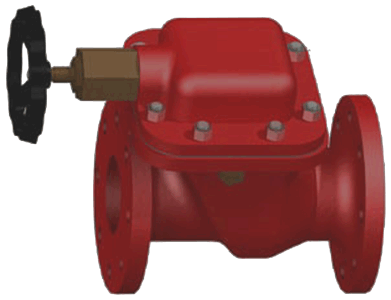

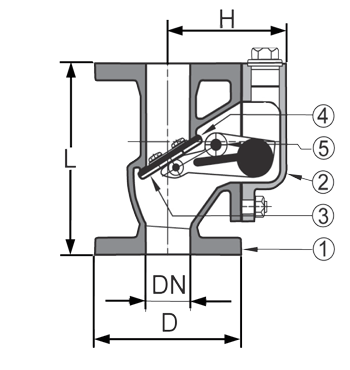

| Rettløp Stormklaff PN4 fig. 159701 (DIN 87101) | 02-030-001 |
|
No |
Part |
Material |
Werkstoffe |
|
1 |
Body |
Nodular cast iron |
Sphäroguss GGG-40.3 |
|
2 |
Bonnet |
Nodular cast iron |
Sphäroguss GGG-40.3 |
|
3 |
Disc |
Gunmetal LG2 |
CuSn5ZnPb |
|
4 |
Disc ring |
Perbunan rubber |
Perbunan-gummi |
|
5 |
Hinge pin |
Special brass |
Sondermessing |
|

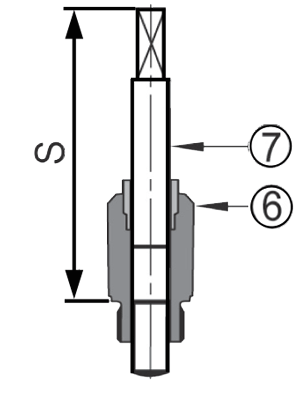

6 |
Stem nut |
Special brass |
Sondermessing |
|
7 |
Stem |
Special brass |
Sondermessing |
|
DN |
D |
L |
H |
S |
Weight kg |
|
50 |
165 |
200 |
137 |
165 |
16.0 |
|
65 |
185 |
240 |
148 |
165 |
20.0 |
|
80 |
200 |
260 |
174 |
165 |
26.0 |
|
100 |
220 |
300 |
195 |
165 |
33.0 |
|
125 |
250 |
350 |
216 |
200 |
47.0 |
|
150 |
285 |
400 |
242 |
200 |
63.0 |
 |
