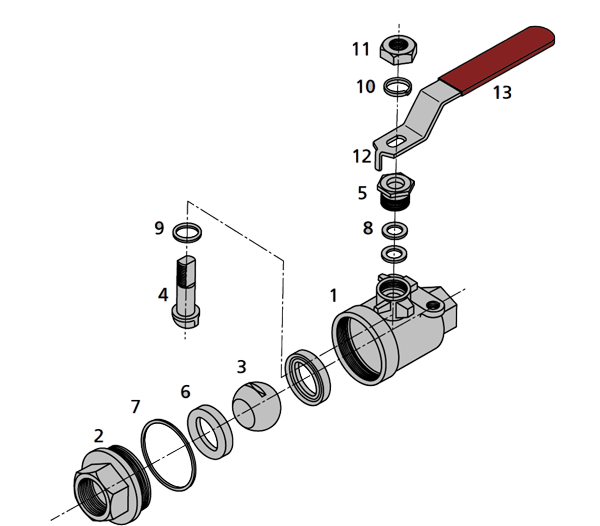

Typical parts arrangement 2-piece ball valve 02-041-001


1. Body
2. Cap
3 Ball
4. Stem
5. Gland nut
6. Ball seat Teflon PTFE (Reinforced)
7. Body seal Teflon PTFE
8. Packing Teflon PTFE
9. Thrust washer Teflon PTFE
10. Spring washer
11. Nut
12. Handle
13. Hand sleeve PVC

..
