| Gøtze Sikkerhetsventil 618T |
Angular shape, spring-loaded. Completly Closed oil and gastight upper
part. Also suitable as overflowvalve in the event of Backpressure .
Sealed to prevent unauthorised changing of set pressure
Suitable for :
- Liquids
- Gases
- Steam
Resistant to oil , unleaded petrol and benzene
Material : Red Brass
Max temp : 250 Gr. C
Sealing : Teflon

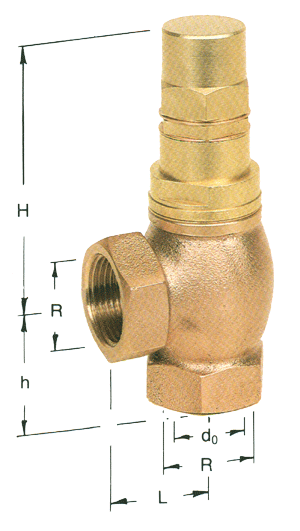

| Dim | L | H | h | do | Vekt |
| 3/8" | 27 | 65 | 26 | 10 | 0,29 |
| 1/2" | 30 | 71 | 30 | 13 | 0,42 |
| 3/4" | 33 | 79 | 35 | 19 | 0,59 |
| 1" | 40 | 95 | 41 | 25 | 1,0 |
| 1 1/4" | 45 | 110 | 45 | 30 | 1,75 |
| 1 1/2" | 50 | 135 | 51 | 38 | 2,3 |
| 2" | 60 | 140 | 60 | 50 | 3,30 |
| 07.05.2010 |  |
