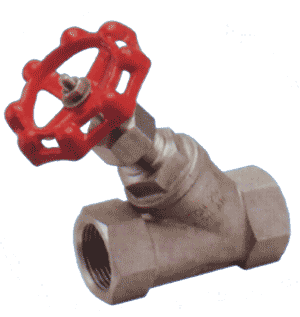

Application:
Liquids, steam and gases that do not attack the integral
material.
Variants:
Non return disc
etc. |
|
|
|
Nr
No
|

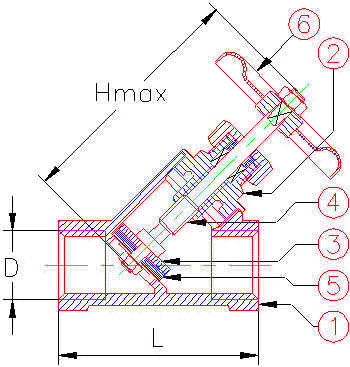

Detalj
|
Part
|
Material
|
|
1
|
Hus
|
Body
|
Stainl.
st 316 C16
|
|
2
|
Overdel
|
Bonnet
|
Stainl.
st 316 C16
|
|
3
|
Kjegle
|
Disc
|
Stainl.
st 316 S33
|
|
4
|
Spindel
|
Stem
|
Stainl.
st 316 S33
|
|
5
|
Kjeglepakning
|
Disc
ring
|
PTFE
|
|
6
|
Ratt
|
Handwheel
|
Pressed
steel
|
|
| DN |
D |
L |
Hmax |
Weight
|
Max
work press
|
Test
pressure
|
|
kg
|
Mpa
120°C
|
Mpa
200°C
|
Hus
Shell
|
Sete
Seal
|
|
8
|
G
1/4"
|
57
|
90
|
0.3
|
4.0
|
2.9
|
6.0
|
4.4
|
|
10
|
G
3/8"
|
57
|
90
|
0.3
|
4.0
|
2.9
|
6.0
|
4.4
|
|
15
|
G
1/2"
|
61
|
100
|
0.4
|
4.0
|
2.9
|
6.0
|
4.4
|
|
20
|
G
3/4"
|
70
|
125
|
0.5
|
4.0
|
2.9
|
6.0
|
4.4
|
|
25
|
G
1"
|
86
|
130
|
0.7
|
4.0
|
2.9
|
6.0
|
4.4
|
|
32
|
G
11/4"
|
100
|
165
|
0.9
|
4.0
|
2.9
|
6.0
|
4.4
|
|
40
|
G
11/2"
|
111
|
165
|
1.4
|
4.0
|
2.9
|
6.0
|
4.4
|
|
50
|
G
2"
|
138
|
210
|
1.7
|
4.0
|
2.9
|
6.0
|
4.4
|
|
