| DIN connectors Solenoids |
 |
|
|||
|
|

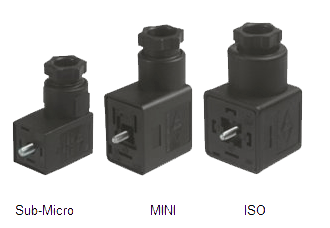

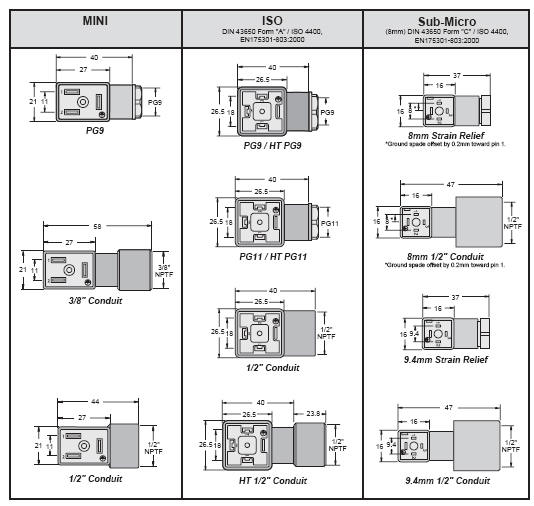

The ISO and 8mm Sub-Micro
connectors are made according to DIN 43650 / ISO 4400, EN175301-803:2000.
The MINI and 9.4mm Sub-Micro connectors are industry standards. All are used
as protective enclosures for electrical connection in conjunction with
hydraulic and pneumatic solenoid valves. These connectors offer distinct
advantages over "hardwired" solenoid valves because of their modular design.
Used where rapid
installation and service are a must. Better than molded construction when
special wire is needed or when using one long wire run.
|
||
|
|
|||
|
|
|||
|
|||
