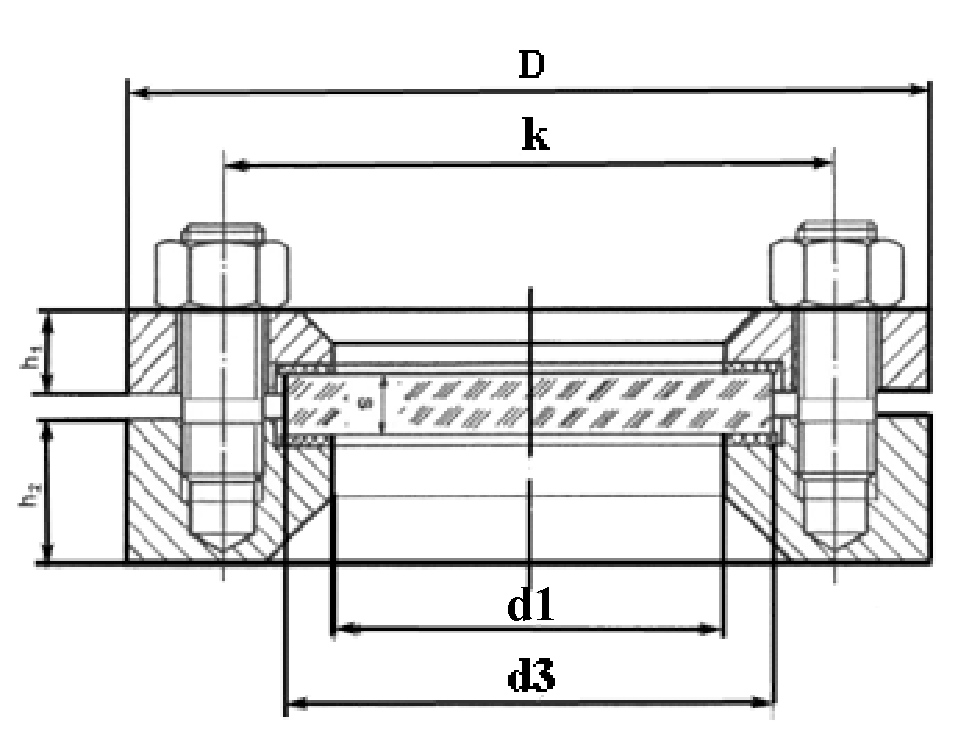

Seglass fig .120 for innsveising i tank H II /AISI 316

05-077-002



Se-glass for innsveising i tank.

Material :  Stål HII eller AISI 316
Tryklasse 10 eller 16 Bar
Max temp 150 Gr.C  Glass DIN 8902
Max temp 280 Gr.C Glass DIN7080


DN PN d1 d3 s D k h1 h2 Skruer
50 10/16 80 100 15 165 125 16 25 4xM12
80 10/16 100 125 15/20 200 160 20 30 8xM12
100 10/16 125 150 20/25 220 180 22 30 8xM16
125 10/16 150 175 20/25 250 210 25 30 8xM16
150 10/16 175 200 25/30 285 240 30 36 8xM20
200 10/16 225 250 30 340 295 35 36 8xM20
