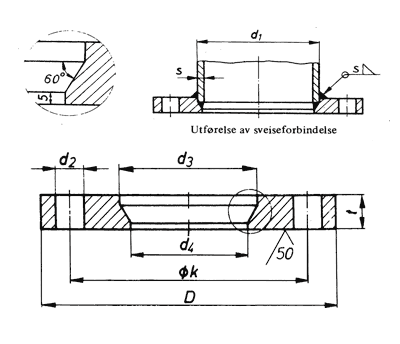

| Plane sveiseflenser NS2529 PN40 |
| DN | d1 | D | b | k | h1 | d4 | No Bolter |
Bolt | d2 |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 48,3 | 150 | 18 | 110 | 45 | 43 | 4 | M 16 | 18 |
| 50 | 60,3 | 165 | 20 | 125 | 48 | 55 | 4 | M 16 | 18 |
| 65 | 76,1 | 185 | 24 | 145 | 52 | 70 | 8 | M 16 | 18 |
| 80 | 88,9 | 200 | 24 | 160 | 58 | 83 | 8 | M 16 | 18 |
| 100 | 114,3 | 235 | 26 | 190 | 65 | 107 | 8 | M 20 | 22 |
| 125 | 139,7 | 270 | 26 | 220 | 68 | 132 | 8 | M 24 | 26 |
| 150 | 168,3 | 300 | 28 | 250 | 75 | 158 | 8 | M 24 | 26 |
| 200 | 219,1 | 375 | 32 | 320 | 88 | 207 | 12 | M 27 | 30 |
| 250 | 273 | 450 | 36 | 385 | 105 | 259 | 12 | M 30 | 33 |
 |
