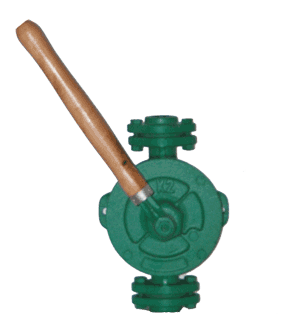

Double Acting Semi-Rotary Hand Wing Pumps
The simple and robust design, quality of materials and workmanship
quarantee long and effective service.
These pumps are suitable for handling of clear and light
liquids as water, petrol, diesel and all fuels, paraffin, alcohol, light
chemical solution, edible oils etc. and are the only hand pumps safe for
use with very hot liquids up to 80 °C (176°F) |
|

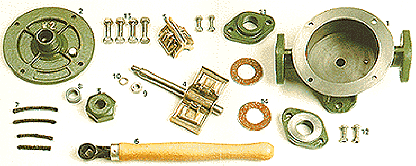

1.
Casing
2.
Cover
3.
Gland Nut
4.
Wing Piston with Flaps &
Shaft
5.
Suction Divider with flaps |
6.
Handle
7.Gland Packing
8..Gland Ring
9.
Shaft Nut
10.
Washer |
11.
Counter flange
12.
Flange Bolt & Nut
13.
Cover Bolt & Nut
14.
Flange Joint |
|
|
|
|
 | The handle moves back
and forth in a 110 degree arc, which in turn
causes the wing piston with flaps (4) to
semi-rotate within the body.
|
| The suction divider
with flaps (5) operates as the inlet check valve.
|
| The unit discharges
fluid on both strokes of the handle.
|
| It must be bolted to a
strong vertical surface with the letters "ISH"
at the top - two mounting lugs are provided.
|
| The handle can be
installed either pointing up, down, left or
right. |
|
|
|

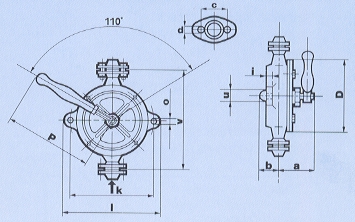

| D - 170 mm |
a - 145 mm |
| b - 60 mm |
i - 10 mm |
| k - 170 mm |
v - 230 mm |
| l - 200 mm |
o - 13 mm |
| p - 360 mm |
u - 30 mm |
| c - 75 mm |
d - 9.5 mm |
|
 |
| Weight: 8 kg (18 lbs.)
|
| Capacity: 5 G.P.M (22.5
L.P.M.) at 55 double strokes per minute
|
| Plumbing Connection: 1"
female pipe thread
|
| Maximum Discharge
Pressure: 37.5 P.S.I.
|
| Maximum Discharge
Height: 25 m (82 ft.)
|
| Maximum Suction Lift: 7
m (22 ft.) |
|
|
|
|
|
